Brand Name : Fairtech
Model Number : FT010
Certification : CE,Rosh
Place of Origin : China
MOQ : 1pcs
Price : USD300-500/PC
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability : 10000000pcs per Week
Delivery Time : 3-5days
Packaging Details : 1. Individual Package 2. Carton Package 3. Pallet Package

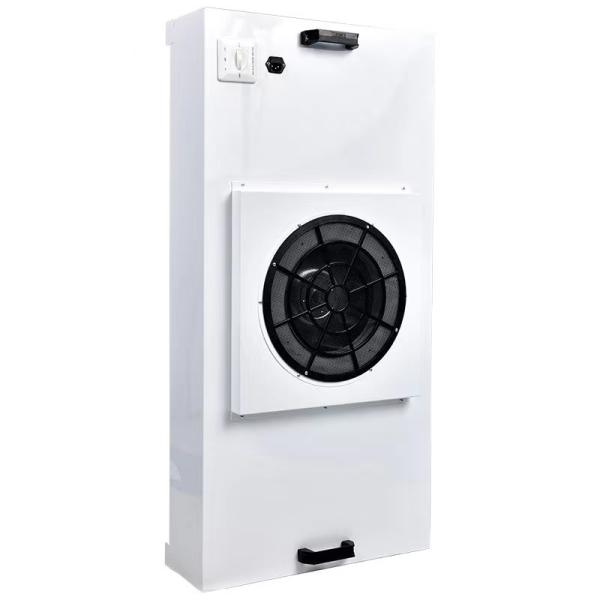

Product name : FFU Filter Units Clean Rooms Fan Coil Filter Filter Fan Units Cleanroom
Dimension(L*W*H) : 1175*575*305
Rated air volume : 900m³/h
Fan vibration coefficient : 0.2-0.5mm/s
Power : 180Pa 0.45m/s
Definite time : Suggested 15mins
Filter initial pressure loss : 180Pa 0.45m/s
Efficiency : 0.12um 99.99%
Fan Filter Unit Description:
 FAN FILTER UNIT is a modular terminal air supply device with its own power and filtering function. Equipped with primary and high-efficiency two-stage filters, the top of the fan is filtered by primary and high-efficiency filters, and clean air is evenly sent out at a wind speed of 0.45 meters per second.
 FFU is a type of unit used for filtering laminar air and supplying clean air.
 FFU can be standalone or installed modularly.
 FFU is the core element for making cleanroom products of different classes, including clean booth, clean bench and clean room
 FFU is a laminar flow filter unit that can be installed and used independently or taking modularity


 Fan Filter Unit FEATURES:
 1.Low consumption,super performance and low operation cost Direct drive backward inclined fan, high efficiency, low noise, more endurable, more energy-saving
 2.Scientific air passage design, low resistance, low noise, save space
 3.Flexible design to suit various needsWe are equipment with great capabilities of customized design to suit various needs.external size can be altered to suit various type of GRID.Also, we provide professional solutions in respond to changes of external material case,special power supply, or changes of fan configuration
 4.Safe and operation friendly FFU is able to support high-intensity box and ensures the safety of staff for installation and maintenance. Remote monitoring and adjustment are available and it is easy to operate
 5.Muiti-level protective devicesFFU is equipped with over-current relay, motor protective device, fault indicator and fault signal circuit. Thermal protector, fuse and motor breaker and such can be applied upon request.
| Model | FFU901B-S | FFU901C-S | FFU901B-S | FFU901C-S |
| Parameters | FFU-901B-AZ | FFU-901C-AZ | FFU-901B-AZ | FFU-901C-AZ |
| Rated Flow (m³/h) | 900 | |||
| Noise A (dB) | ≤54 | |||
| HEPA Filter Efficiency | ≥99.99% @ ≥0.3μm | |||
| Power Supply | AC220V±10%, 1Φ, 50HZ±2HZ | |||
| Input Power (VA) | 180 | |||
| Dimensions L*W*H (mm) | 1220-610-320 | 1170-570-320 | 1220-610-320 | 1170-570-320 |
| HEPA Filter Size (mm) | 1220-610-69 | 1170-570-69 | 1220-610-69 | 1170-570-69 |
| Pre Filter Size (mm) | 450-400-25 | N/A | ||
| Weight (kg) | 32 | 31 | 32 | 31 |





1.Q: Are you a factory or trading company?
 A:We are professional factory, so our price is very competitive ex-factory price, and welcome to visit the factory.
 2. Q:Where is your factory located?
 A:Our factory located in Shenzhen China, near Guangzhou port.
 3. Q:How can I get some samples?
 A: We are honored to offer you free samples. But you will pay express charge after place an order refund double charge.
 4. Q:What is your terms of payment?
 A:50% advance payment against contract, the balance should be paid before shipment
 5.Q: What do I need for offering a quote ?
 A: Please offer us drawings (with material, dimension and other technical requirement etc.) ,quantity, application or samples.
 Then we will quote the best price within 24h.
 6. Q: What's the delivery time?
 A: For products in stock, within 3-5 days after receiving your payment. For custom order, about 4-10 days after confirmed every
 details.
 7.Q:How about the quality of your product?
 A:100% inspection during production.
 8. Q:How about quality control in your factory?
 A:Quality is our culture. We pay great attention to quality control beginning to the end. Every piece of goods is tested strictly
 before packing and delivery.
 9.Q: What's your packing?
 A:Full consideration of practical situation: foam/wooden box, anti-rust paper, small box and carton, etc.
 10. Q: What about the warranty?
 A: We are very confident in our products, and we pack them very well with PE Foam and carton box+wood pallet to make sure the
 goods in well protection.
 11. Q: Why choose us?
 A: We have professional team with rich experiences and high precision equipment which can guarantee the product quality, through
 our scientific management and strict cost control we can offer you the best competitive.
|   |
